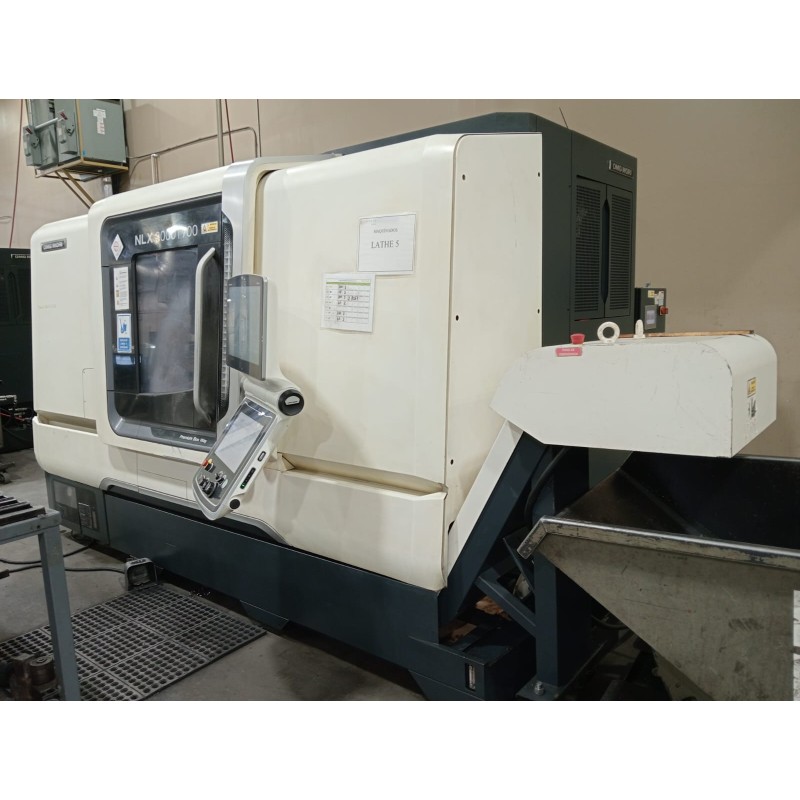

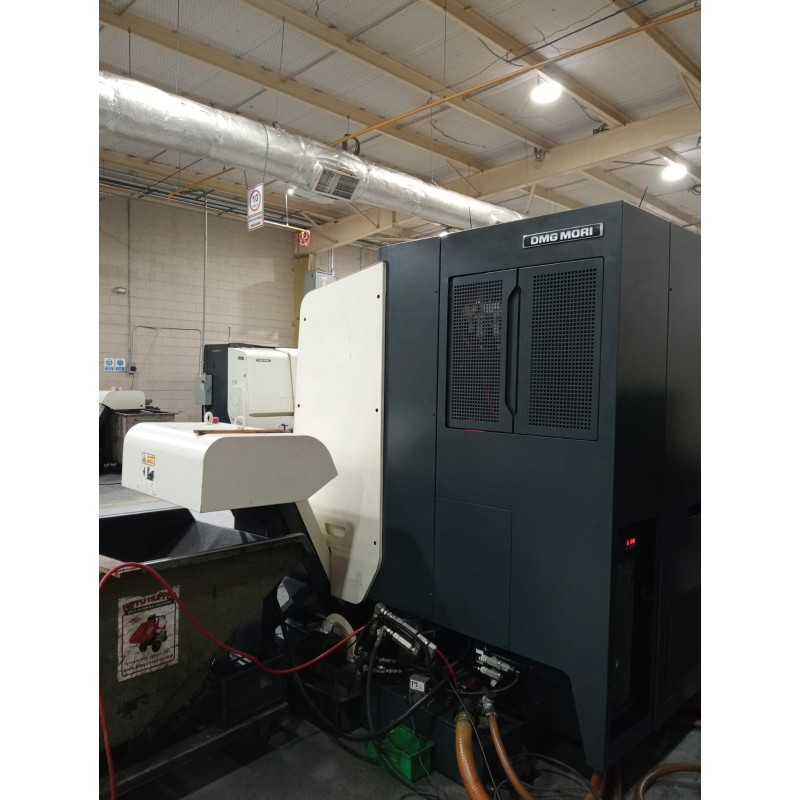

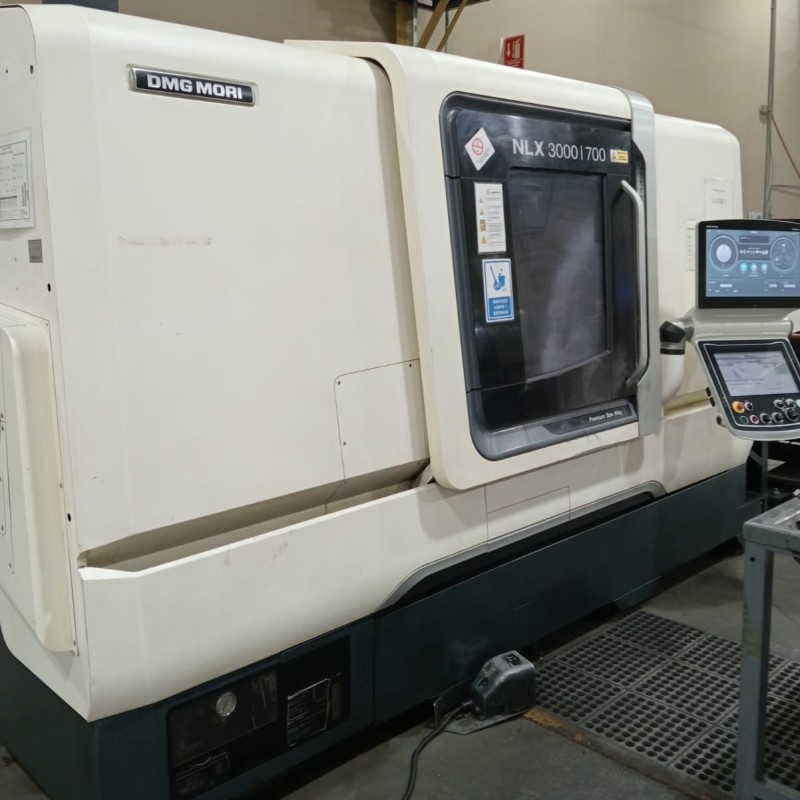

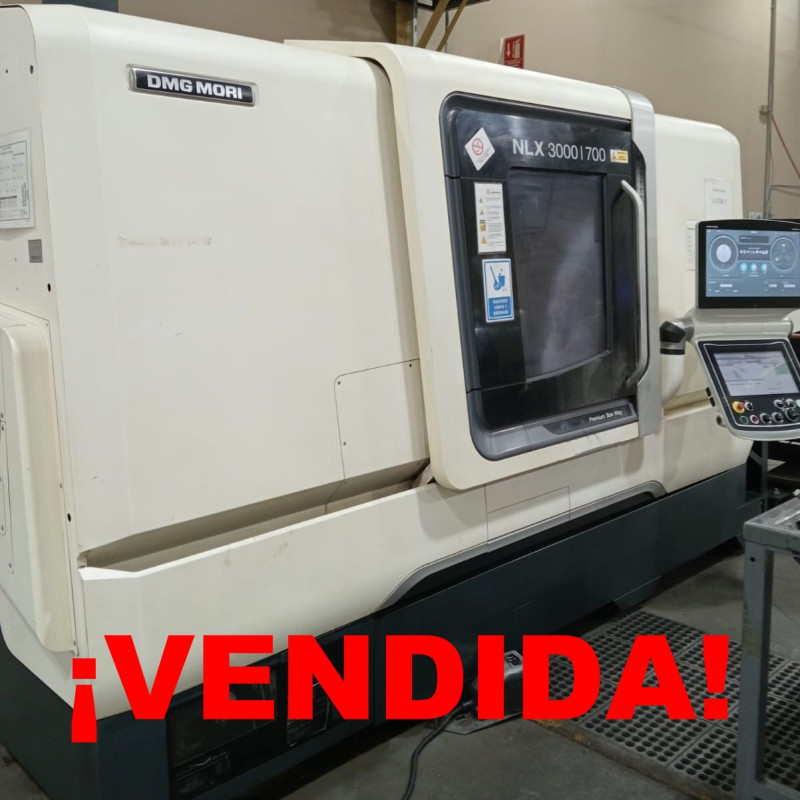

DMG Mori NLX3000/700 2019

• Structure: FEM-optimized machine body with a stepped column design for high rigidity.
• Spindle: High-speed, high-torque speedMASTER spindle (standard).
• Thermal Stability: Extensive cooling measures and multi-sensor compensation to minimize thermal displacement.
• Control: CELOS with Siemens or MAPPS (21.5" or 24" screen).
  en.dmgmori.com +3

• Travels:
  • X-axis: 560 mm (22.0 in)
  • Y-axis: 560 mm (22.0 in)
  • Z-axis: 660 mm (26.0 in)
• Table:
  • Pallet Size: 400 × 400 mm (15.7 × 15.7 in)
  • Max Workpiece Weight: Up to 400 kg (882 lbs)
• Spindle:
  • Speed: 15,000 RPM (Standard), 20,000 RPM or 30,000 RPM (Option)
  • Taper: BT40 (Dual Contact)
• Tooling:
  • Tool Magazine Capacity: Typically 40 tools (standard), upgradable to 60 or more.
• Rapid Traverse (X/Y/Z): 60 m/min (2,362 ipm) or higher in newer models.
  en.dmgmori.com +4

• Floor Space: Compact footprint, often under 15 m².
• Weight: Approximately 8,000–10,000 kg depending on configuration.
• Power Requirement: 3-phase AC 220 V.
  DMG MORI Canada +1

• This machine is often equipped with a high-speed APC (Automatic Pallet Changer) for continuous production.
• Applications: Ideal for high-precision, small-to-medium parts in automotive and general machinery industries.
• Automation: Compatible with Linear Pallet Pools (LPP) or robotic handling

*Informacion sujeta a errores, todo dato debera ser confirmado.
