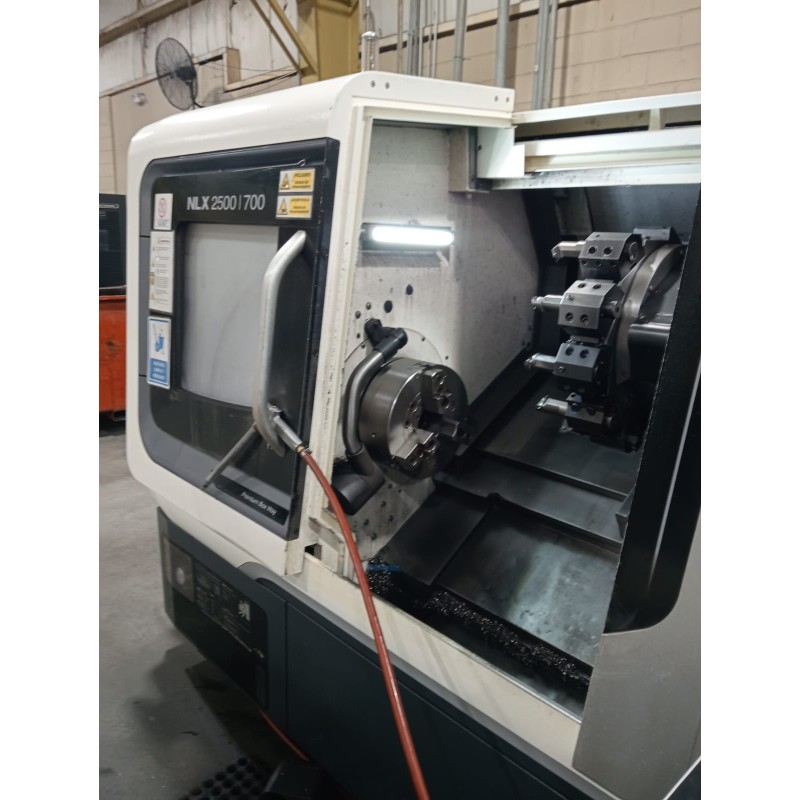

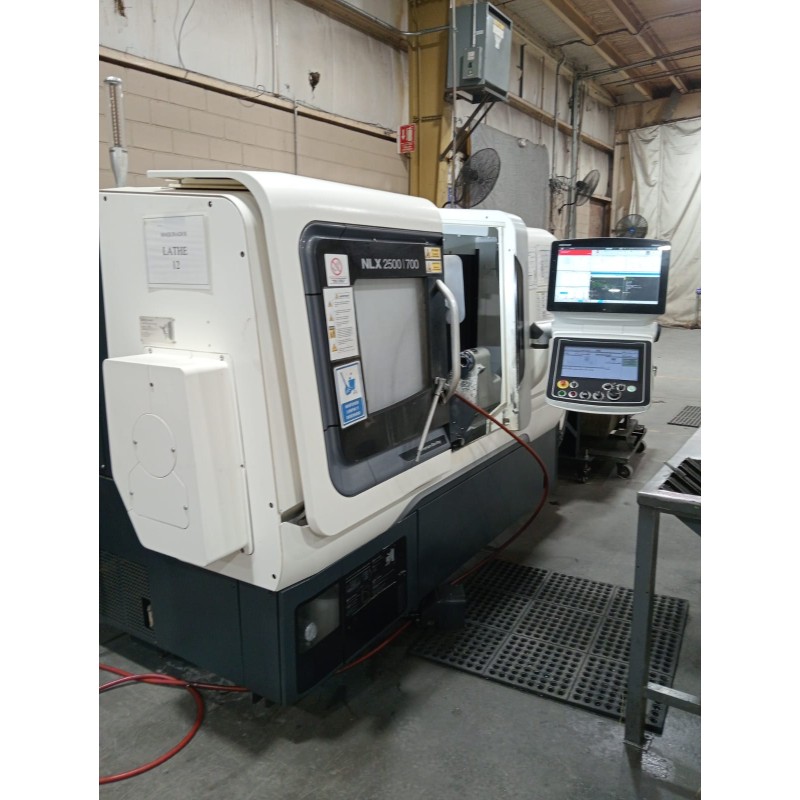

DMG Mori NLX 2500/700 2022

• Capacity:
  • Max. Turning Diameter: Ø366 mm
  • Maximum Turning Length: 705 mm / 708 mm (2nd Generation)
  • Max. Workpiece Diameter: 460 mm
  • Bar Work Capacity: Ø80 mm (standard) / up to Ø90-105 mm (depending on spindle options)
  • Swing over Bed: Ø920 mm
  • Swing over Cross-Slide: 740 mm
• Main Spindle (Left):
  • Speed: 4,000 RPM (standard)
  • Spindle Nose: JIS A2-8
  • Spindle Bore: 91 mm
  • Chuck Size: 10 inch (254 mm)
  • Drive Power: 18.5/15 kW (3 min/cont)
  • Max Torque: 491 Nm (4,000 RPM) / Optional higher torque 2nd Gen: up to 1,273 Nm
• Counter Spindle (Optional - SY models):
  • Speed: 5,000 RPM
  • Chuck Size: 6 or 8 inch (e.g., Kitagawa BB208A621)
  • Drive Power: 11/7.5 kW (25%ED/cont)
  • Travel: 734 mm

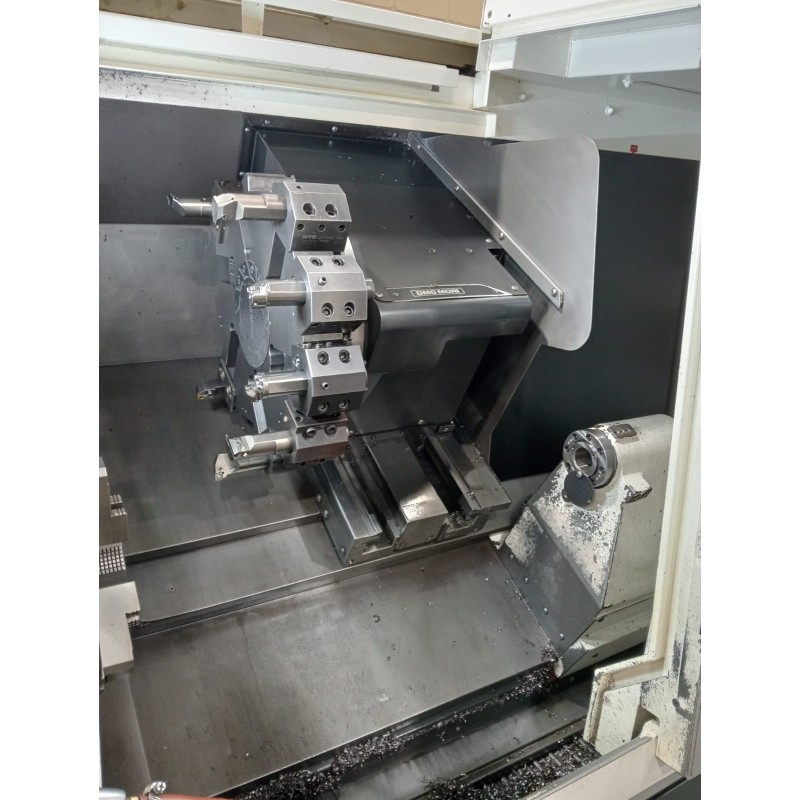

• Turret (Upper):
  • Number of Tool Slots: 12 or 20 (BMT40/BMT60)
  • Driven Tools Speed: 10,000 RPM (standard) / up to 12,000 RPM
  • Driven Tools Power: 5.5/4.9/4.2 kW (3 min/5 min/cont)
• Travels:
  • X-axis: 260 mm
  • Y-axis: ±50 mm (100 mm total) / ±60 mm (2nd Gen)
  • Z-axis: 795 mm
• Feed Rates:
  • Rapid Traverse (X/Z): 30 m/min
  • Rapid Traverse (Y): 10 m/min
• Machine Control:

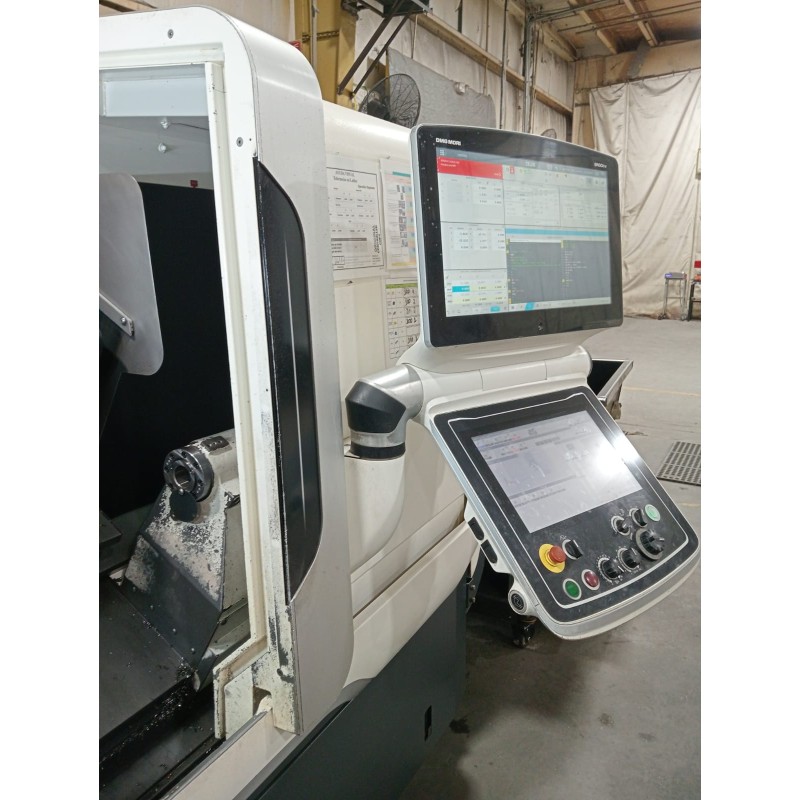

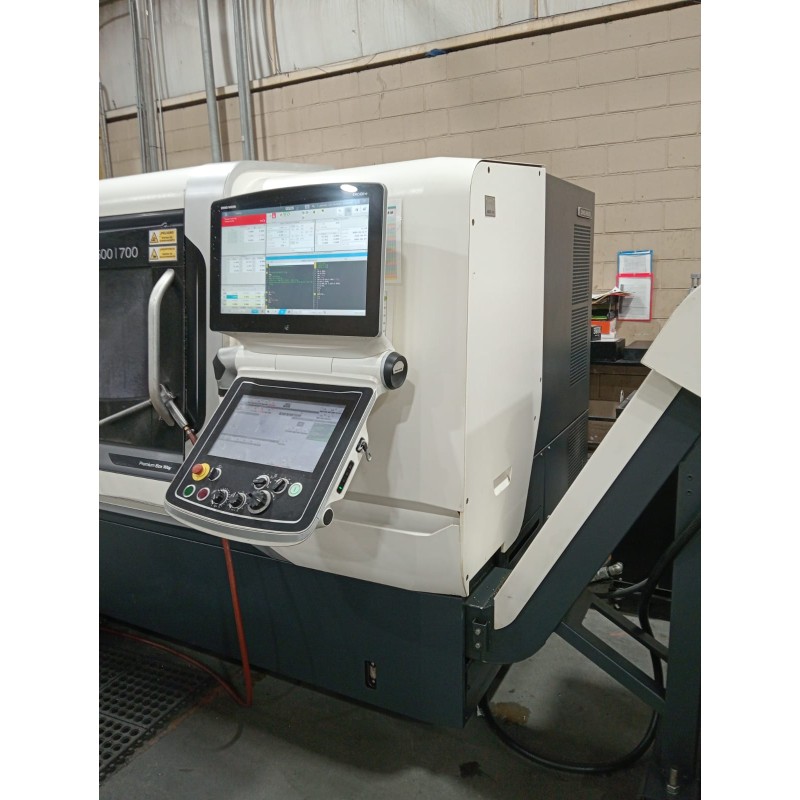

  • Control Unit: CELOS with M730UM (MAPPS V) or FANUC
• Dimensions & Weight:
  • Machine Weight: Approx. 6,000–7,000 kg (varies with config)
  • Floor Space: Approx. 3,000 x 2,000 mm (excluding peripherals)
    en.dmgmori.com +5

*Informacion sujeta a errores, todo dato debera ser confirmado.
