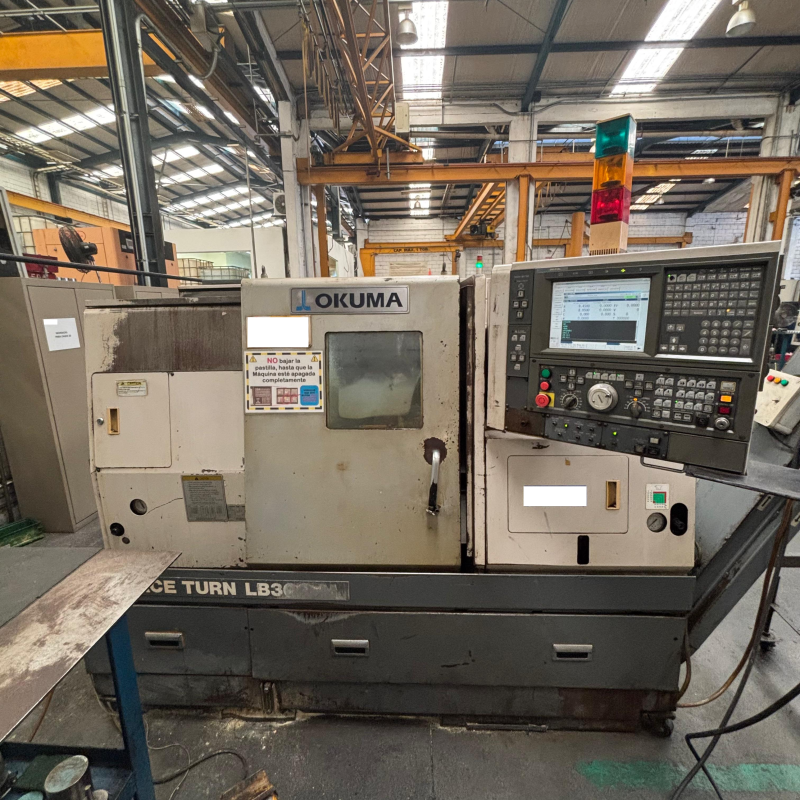

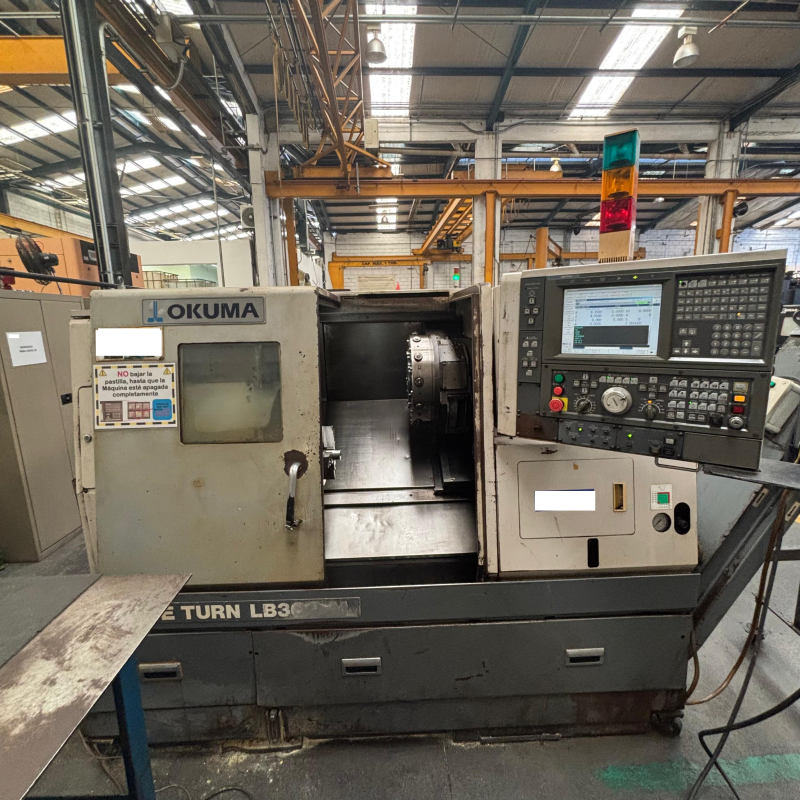

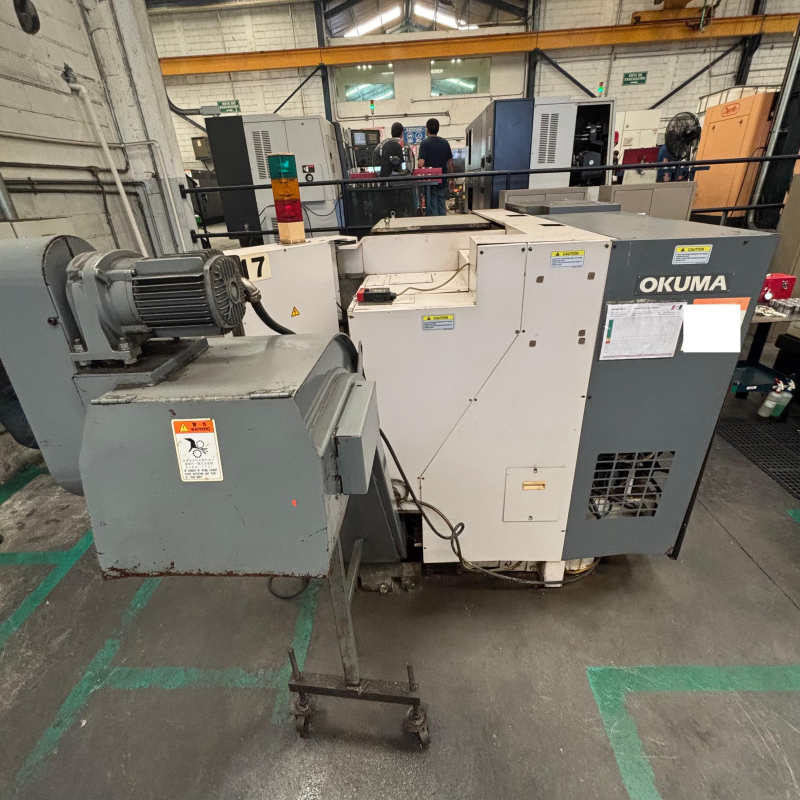

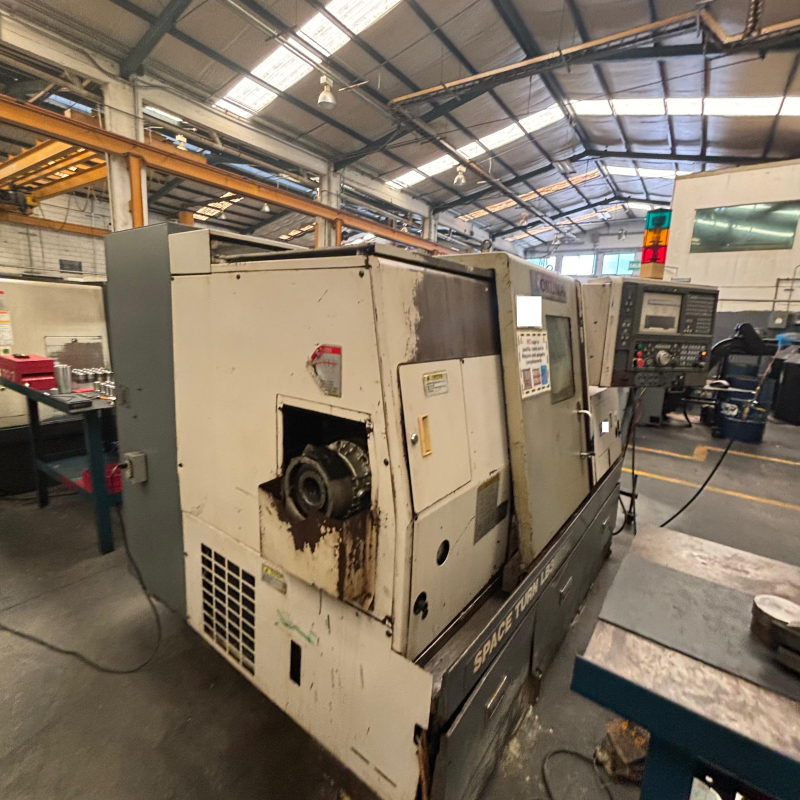

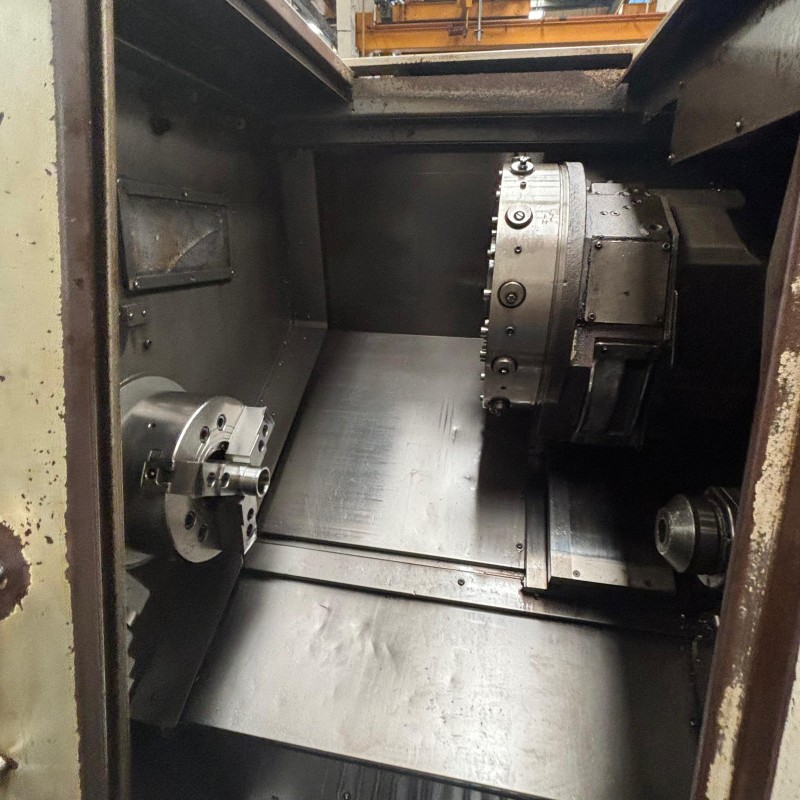

Okuma Space Turn LB-300 2005

Max Swing Over Bed.................. 20.87"

Max Swing Over Cross Slide.......... 16.54"

Chuck Size.......................... 10"

Max Turning Length.................. 19.69"

X-Axis (Cross Travel)............... 10.24"

Z-Axis (Longitudinal Travel)........ 22.24"

X-Axis Feed Rates................... .0001" - 39.37 IPM

X-Axis Rapid Traverse Rate.......... 472 IPM

Z-Axis Feed Rates................... .0001 - 39.37 IPM

Z-Axis Rapid Traverse Rate.......... 591 IPM

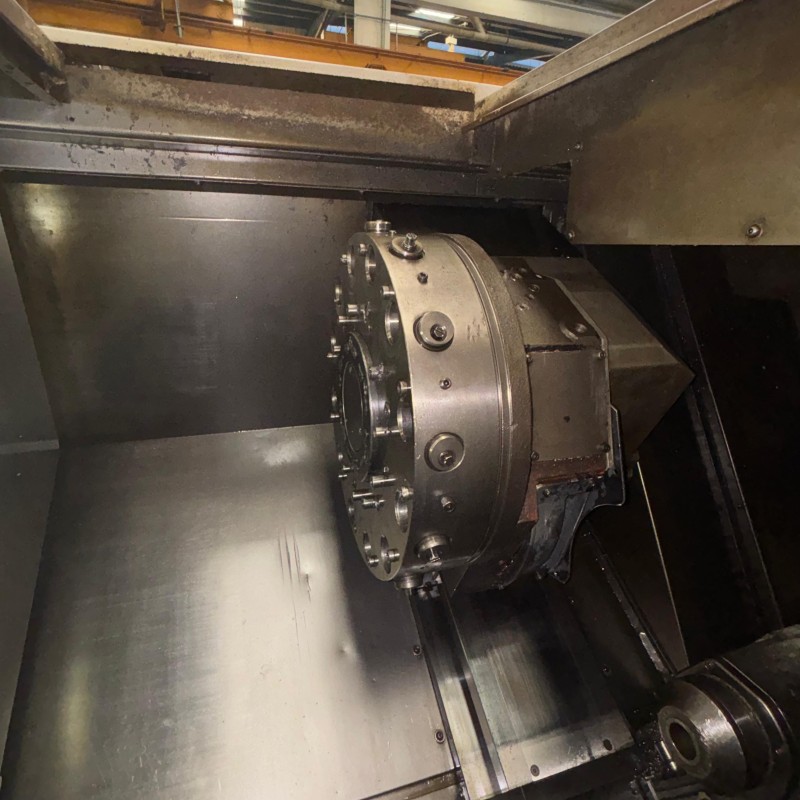

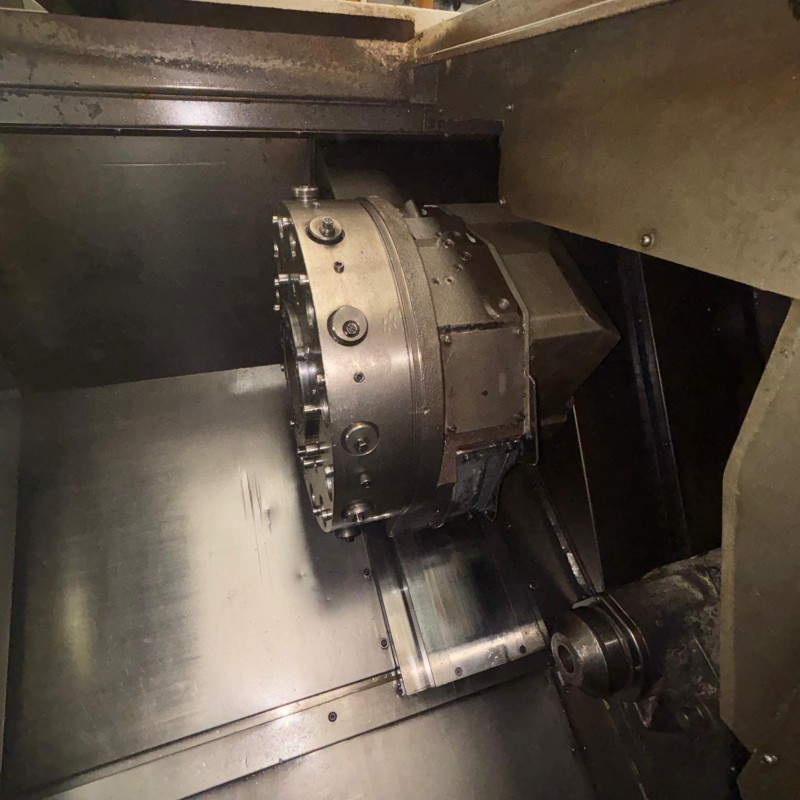

Number of Tool Turrets.............. 1

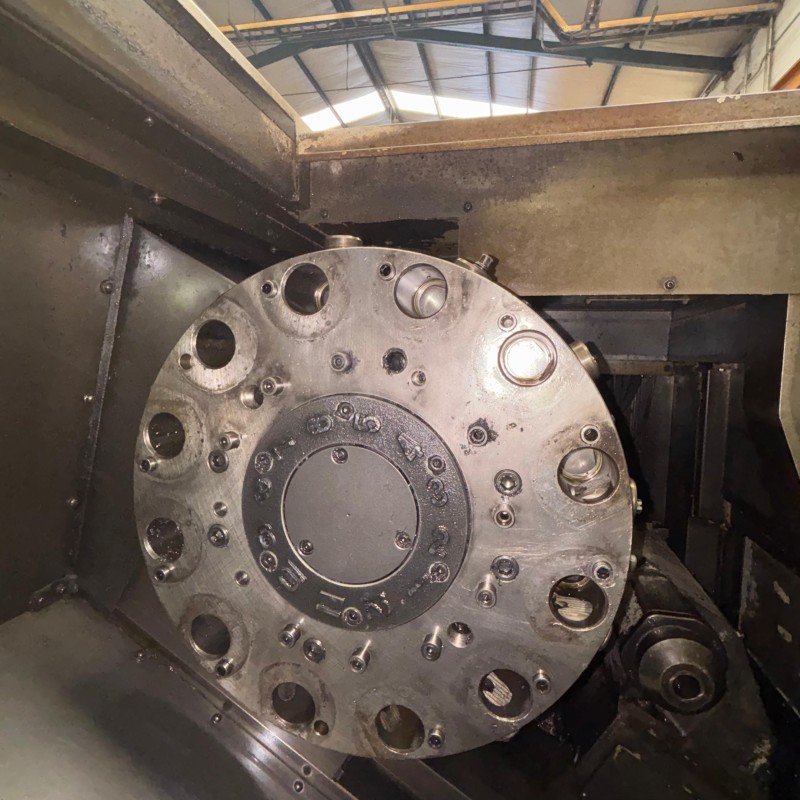

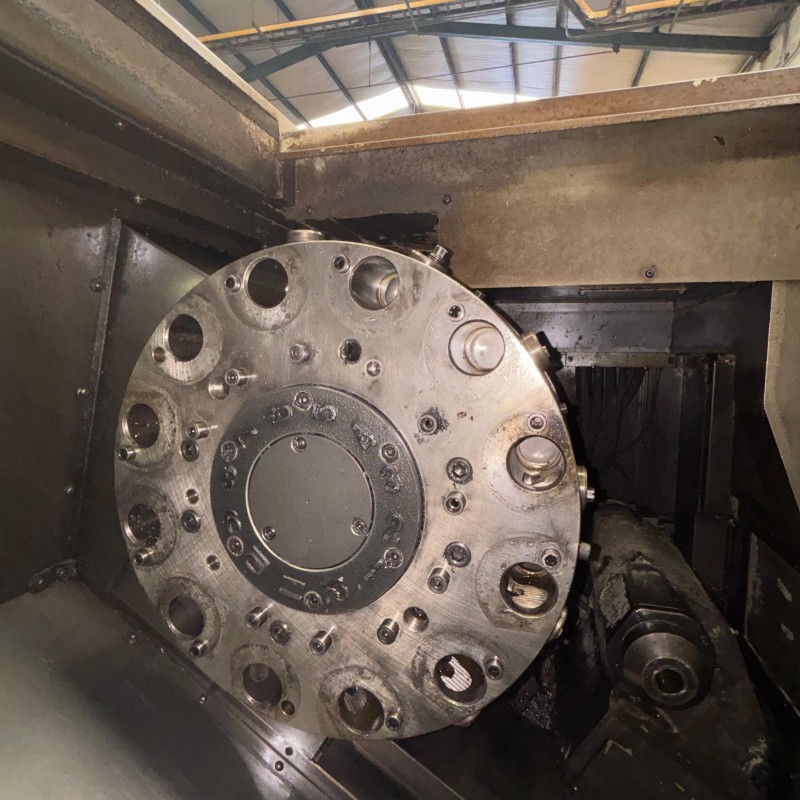

Tool Turret Positions............... 12

Spindle Nose........................ A2-6

Spindle Bore........................ 3.15"

Bar Capacity........................ 2"

Spindle Speed Range................. 45 - 4,500 RPM

Spindle Horsepower.................. 20 HP

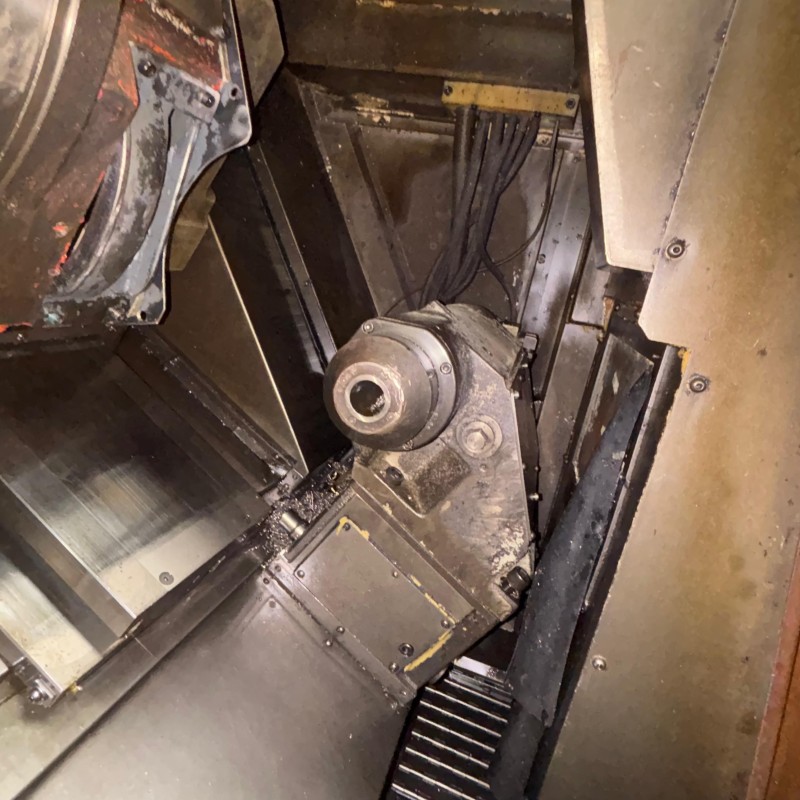

Tailstock Travel.................... YES

Tailstock Electrics........................... 220-480/3/60

Approximate Machine Dimensions...... 105" x 73"

Approximate Machine Height.......... 75"

Approximate Machine Weight.......... 9,700 LBS
